- Provides conical beam shaping
- Minimized waste of material
- Excellent uniformity
- High quality grade graphite
Introduction

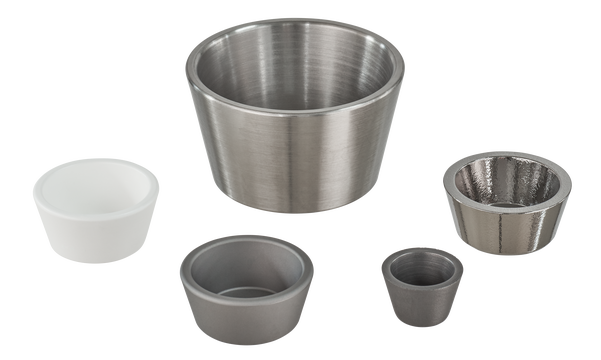

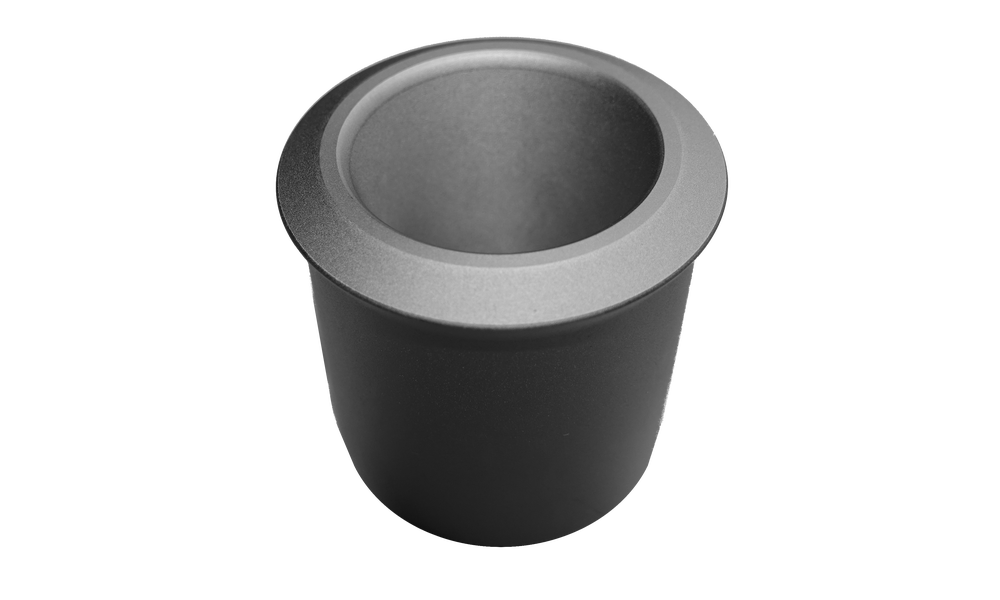

The Beam Shaping Insert (BSI) can be applied in the crucibles of our Production Effusion Cells (PEZ).
Our Crucible Inserts feature precisely engineered conical beam shaping for optimized material distribution, helping to minimize material waste while ensuring excellent uniformity.
Manufactured primarily from high-quality graphite, our crucible inserts combine reliable performance with outstanding material properties. They are designed for demanding applications where precision, efficiency, and consistent results matter most.

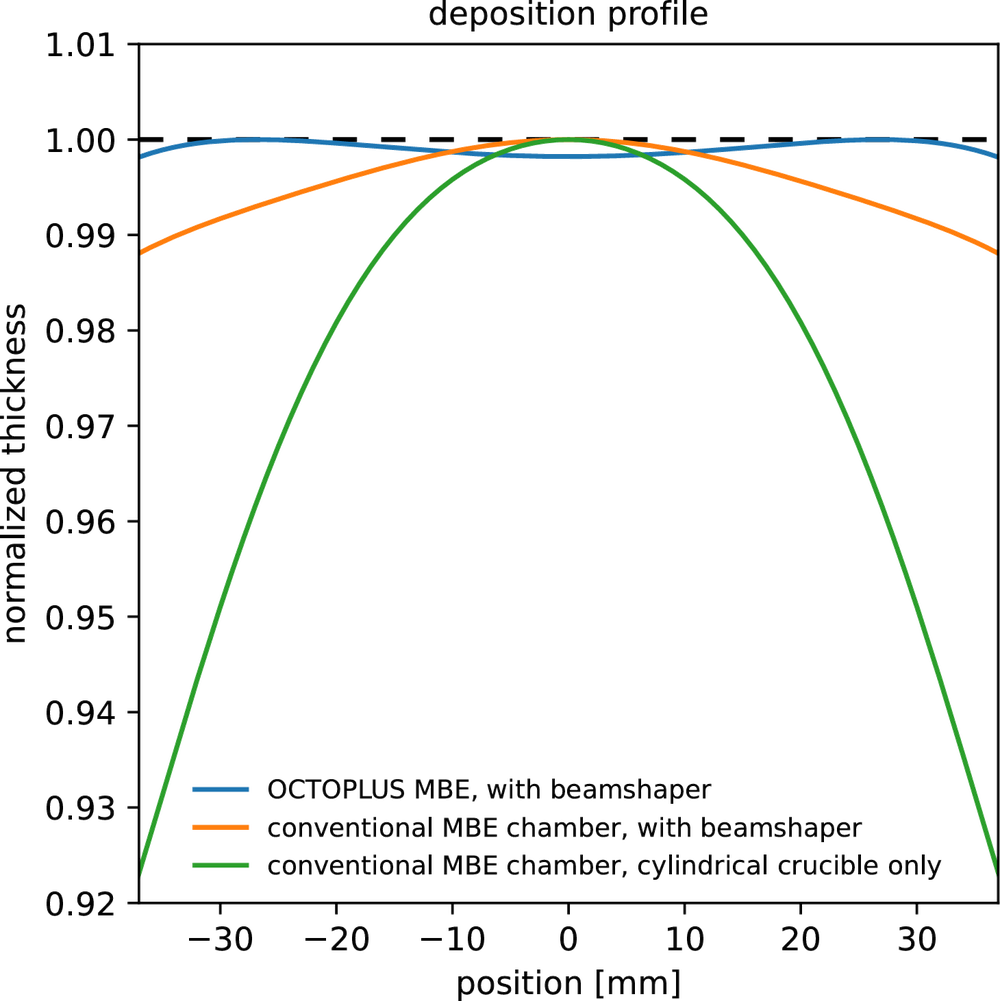

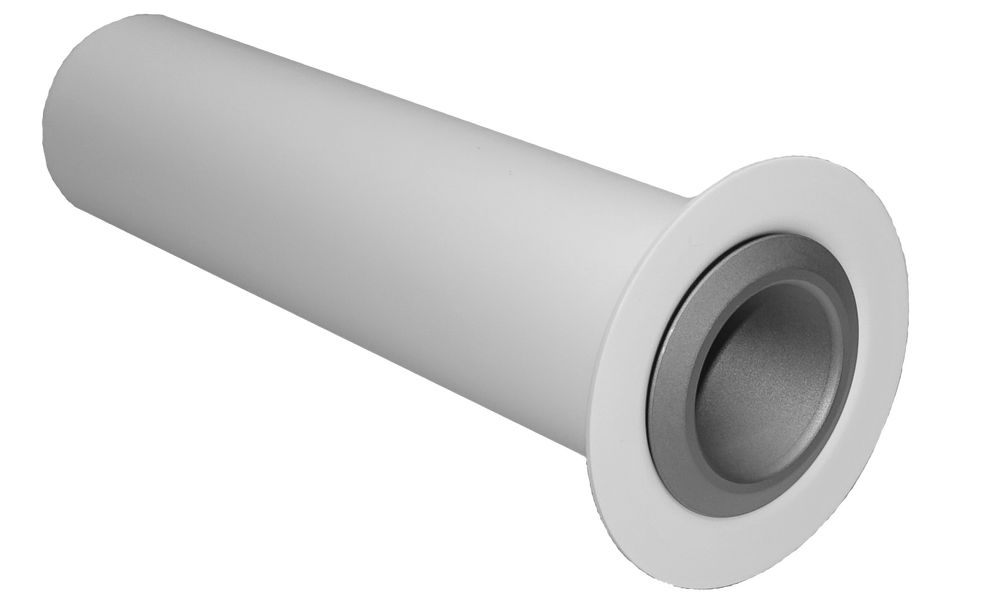

For special applications BSI is also available in PBN.
Product Description
Typical sketches for beam shaping inserts
Production Effusion Cells (PEZ)
The Beam Shaping Insert (BSI) can be applied in our Production Effusion Cells (PEZ).
Production Effusion Cells (PEZ)Specific data
| Part number BSI | Suitable Crucible type | BSI Material |
|---|---|---|
| 422-00-181 | CRU 130-54-PBN | Graphite |
| 422-00-205 | CRU 130-54-PBN | Coated graphite |
| 422-00-224 | CRU 130-54-PBN | Graphite |
| 422-00-225 | CRU 130-54-PBN | Graphite |
| 422-00-226 | CRU 60-37-PBN | Graphite |
| 422-00-284 | CRU 60-37-PBN | Graphite |
| 422-00-303 | CRU 160-60-PBN | Coated graphite |
| 422-00-304 | CRU 35-37-PBN | Graphite |
| 422-00-311 | CRU 60-37-PBN | Coated graphite |
| 422-00-316 | CRU 160-60-PBN | Coated graphite |
| 422-00-319 | CRU 500-90-PBN | Graphite |
| 422-00-321 | CRU 35-37-PBN | Coated graphite |
| 422-00-322 | CRU 35-37-PBN | Coated graphite |
| 422-00-324 | CRU 175-60-PBN | Coated graphite |
| 422-00-335 | CRU 500-90-PBN | Graphite |
| 422-00-336 | CRU 1060-90-PBN | Coated graphite |
| 422-00-338 | CRU 325-66-PBN | Coated graphite |
| 422-00-603 | CRU 175-60-PBN | Coated graphite |
| 415-00-153 | CRU 130-54-PBN | PBN |
| 415-00-156 | CRU 60-37-PBN | PBN |
| 415-00-179 | CRU 25-33-PBN | PBN |
| 415-00-180 | CRU 10-22-PBN | PBN |
Technical specifications are subject to change without notice.
