- DN63CF ( O.D. 4.5" ) mounting flange compatible with all MBE systems
- Thermal cracking up to 1200°C
- 500 cm3 reservoir
- Excellent thermal isolation between low temperature reservoir and hot cracking zone
- Cracking stage with integrated water cooling which is used to crack chemical volatile P4 molecules and guarantees safer pressure of the source
Introduction

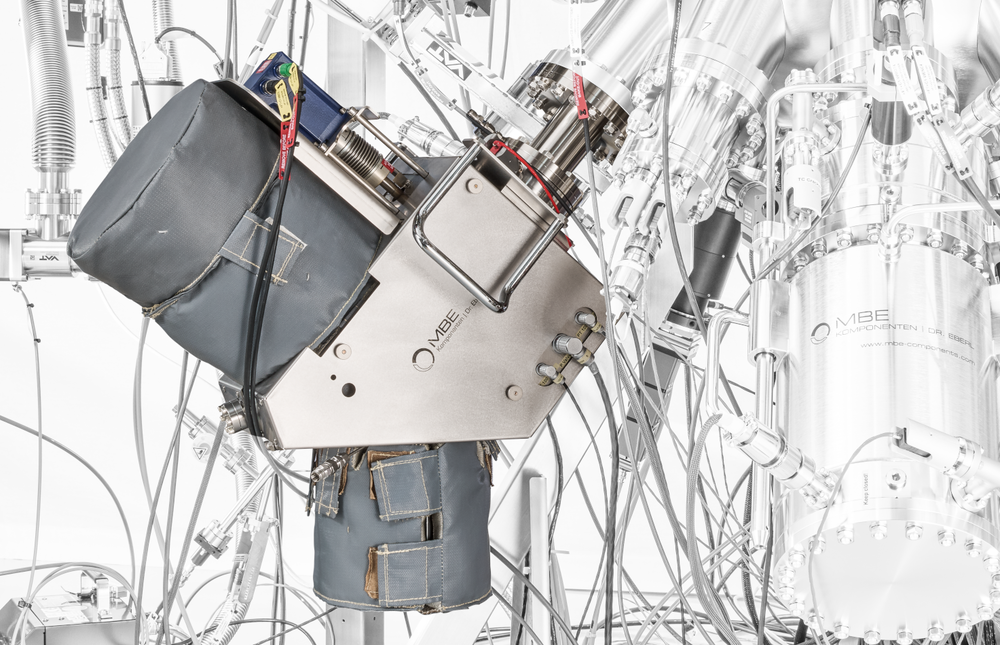

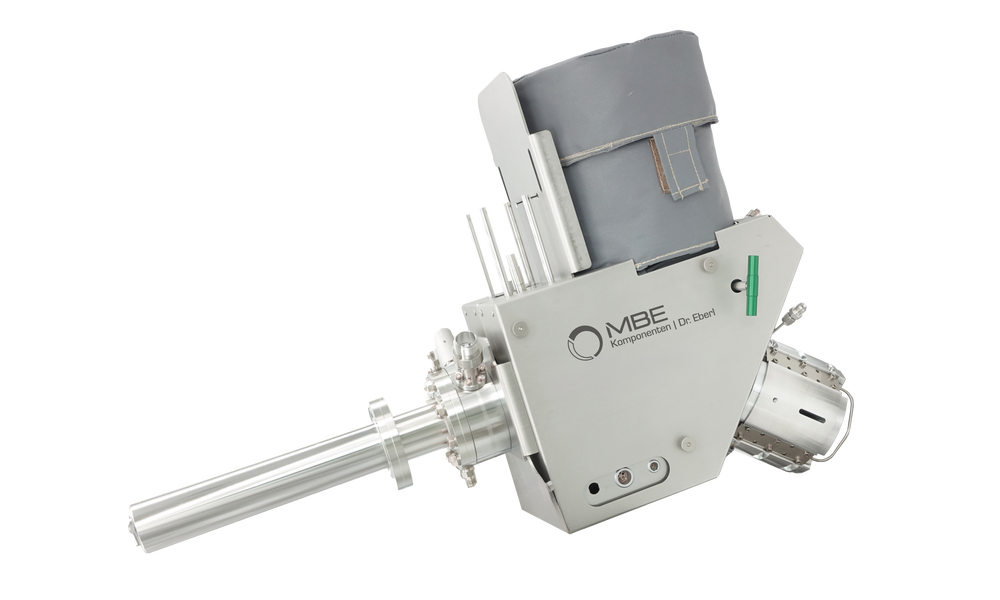

The main purpose of the VPCS is the controlled evaporation of phosphorus from a reservoir inside the source within a vacuum chamber under high to ultra-high vacuum conditions. The source provides a precise phosphorus flux control by the integrated all metal valve in combination with an easy installation and refilling procedure. The integrated cracking module on top of the injector tube allows conversion of naturally sublimated phosphorus into smaller molecules for improved growth conditions.

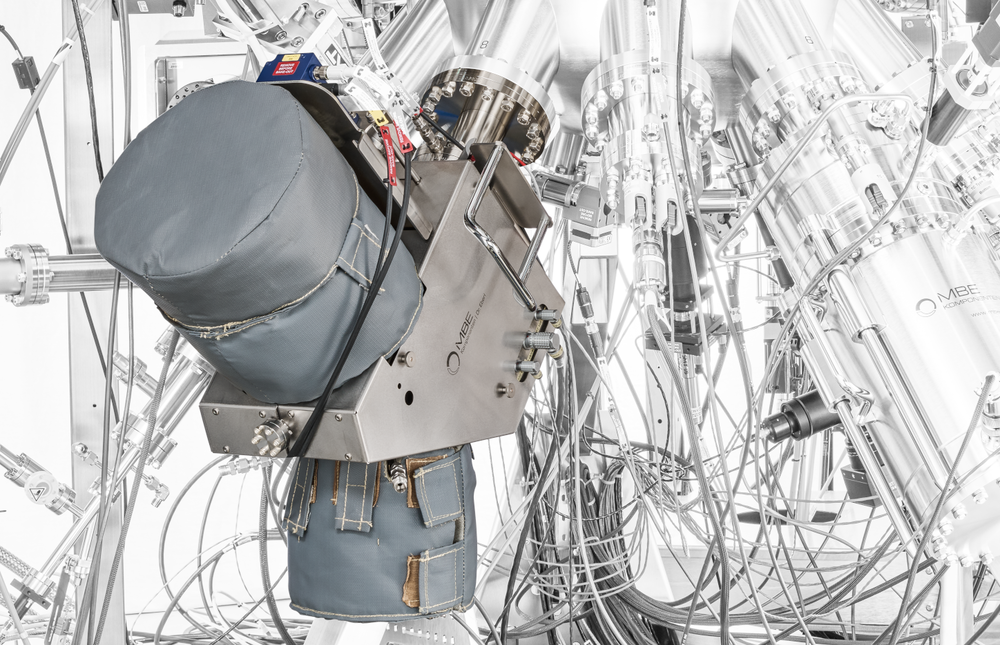

The VPCS comprises the following building blocks:
- Injector with a cracking stage which allows cracking of P4 molecules and guarantees safer pression of the source
- The red phosphorus reservoir with flange for loading of the red phosphorus with the dedicated air-sided heater assembly
- The white phosphorus reservoir with air-sided heater
- The UHV tight valve unit with embedded heating
- Secondary UHV valve for differential pumping of the source
Application
A source concept like this is mainly used for growth of III-V compound materials (GaP, InP etc.). The source is designed exclusively to be operated with red phosphorous.
Technical Data
General | |
Mounting flange | DN63CF ( O.D. 4.5" ) |
In-vacuum length L | 270 mm |
Maximum airside length OL | 580 mm |
In vacuum outer diameter D | 57 mm |
Maximum airside radius AR | 360 mm |
Bakeout temperature (May be lower because of temperature limits of equipment, e.g., cables.) | 200°C |
Typical cooling water flow rate | 30 l/h - 45 l/h |
Weight | 30 kg |
Maximum operational chamber pressure | 1 x 10-5 mbar |
P-red reservoir | |
Temperature sensor | Pt100 class A |
Operating temperature | 250-400°C |
Outgassing temperature | 450°C |
Crucible capacity | 500cc |
P-white reservoir | |
Temperature sensor | Pt100 class A |
Operating temperature | 60°C |
Outgassing temperature | 300°C |
Crucible capacity | 50cc |
Cooling | Integrated water cooling shroud |
Cracker | |
Thermocouple | W5%Re/W26%/Re (type C) |
Operating temperature | 900°C |
Outgassing temperature | Up to 1200°C |
Cooling | Integrated water cooling shroud |
Dimensions
Specific data
For general information on CF mounting flanges see Flange and Gasketdimensions .
Product | CF flange | Nominal capacity | UHV dimensions*** [mm] | max. electrical [W]/[A] | Power supply product code | |
---|---|---|---|---|---|---|
[cm³] | [mm] | [W]/[A] | Product code | |||
VPCS | 63 - | 500 - | L360D34 | P-red reservoir 150/3 P-white reservoir 500/8 Valve 150/3 Cracker 300/12 | PS 60-3.5 PS 60-14 PS 60-3.5 PS 60-14 |
Product code:
e.g. VPCS 63-500-L360D34
is a Valved Phosphorus Cracker Source on DN63CF-flange for an 500 cm³ crucible, in-vacuum length 360 mm and outer diameter 34 mm.
